LD-WFUP-10 Double Electric Ultrapure Water Machine
LD-WFUP-10 Double Electric Ultrapure Water MachineProduct FeaturesØ Applicable to various water quality, the case
LD-WFUP-10 Double Electric Ultrapure Water Machine
Product Features
Ø Applicable to various water quality, the case is with powder coating.
Ø All filter elements in the whole system adopt open mold injection technology
and built-in chassis
Ø Korean quick-connect filter column is easy to replace and maintain.
Ø The electrical and waterways are completely separated to avoid circuit failure
caused by moisture and water leakage.
Ø Water quality online monitoring system.
Ø Automatic RO membrane anti-scaling flushing program, automatic shutdown of tap water, automatic water cut off, automatic water supply in the storage bucket, automatic shutdown of the water storage tank.
Ø All pipelines are NSF certified and have water quality and water upgrade capabilities.
Ø Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
Ø Double electric water intake, two water quality, ready to use.
Ø Open the door design before and after, it is quick and easy to replace the filter element, and the filter replacement can be easily completed without using any tools.
Application
Suitable for all kinds of physical and chemical detection, biochemical analysis, blood test, micro analysis, washing special, HPLC, IC, GC, analysis experiments.

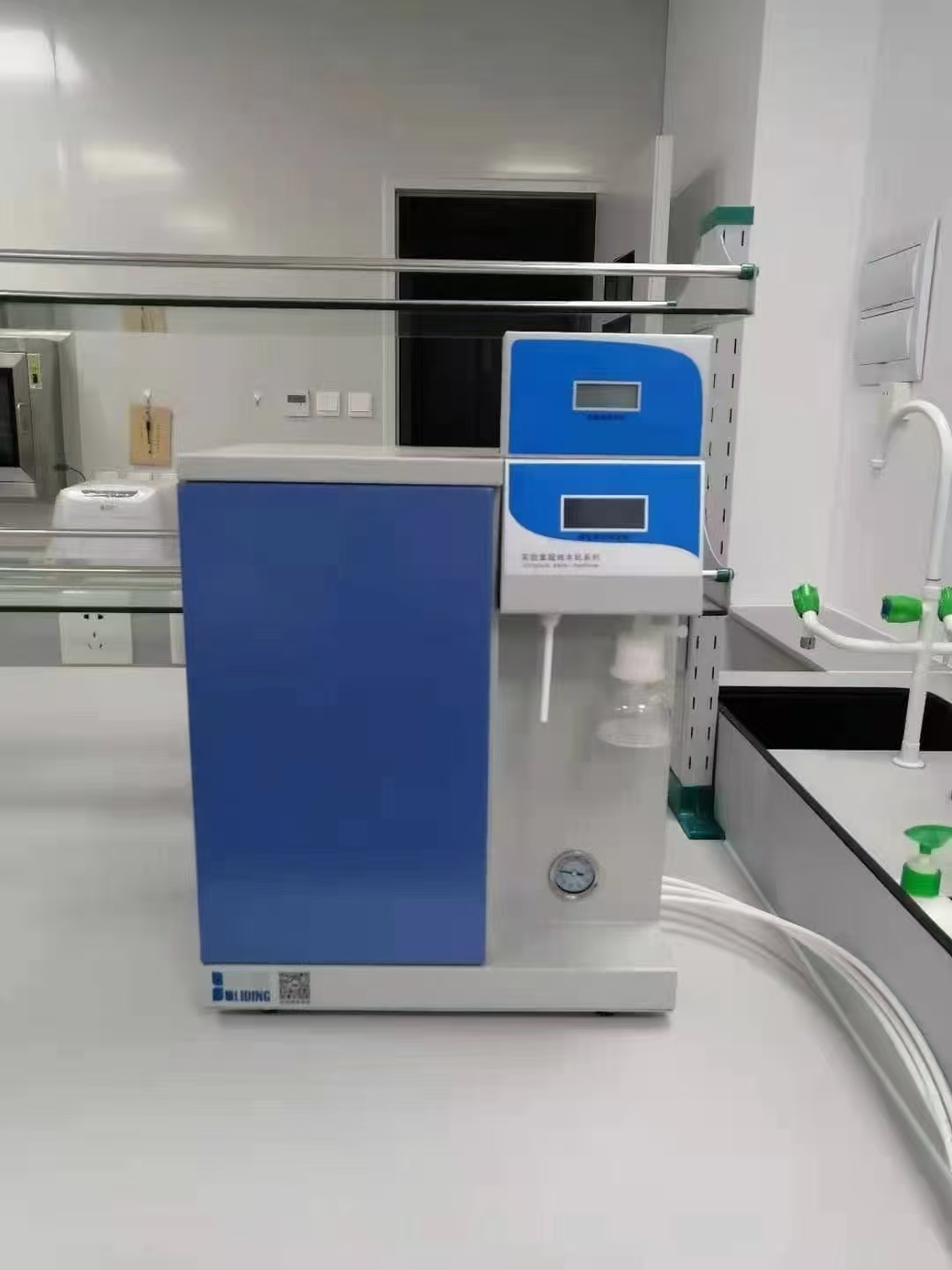

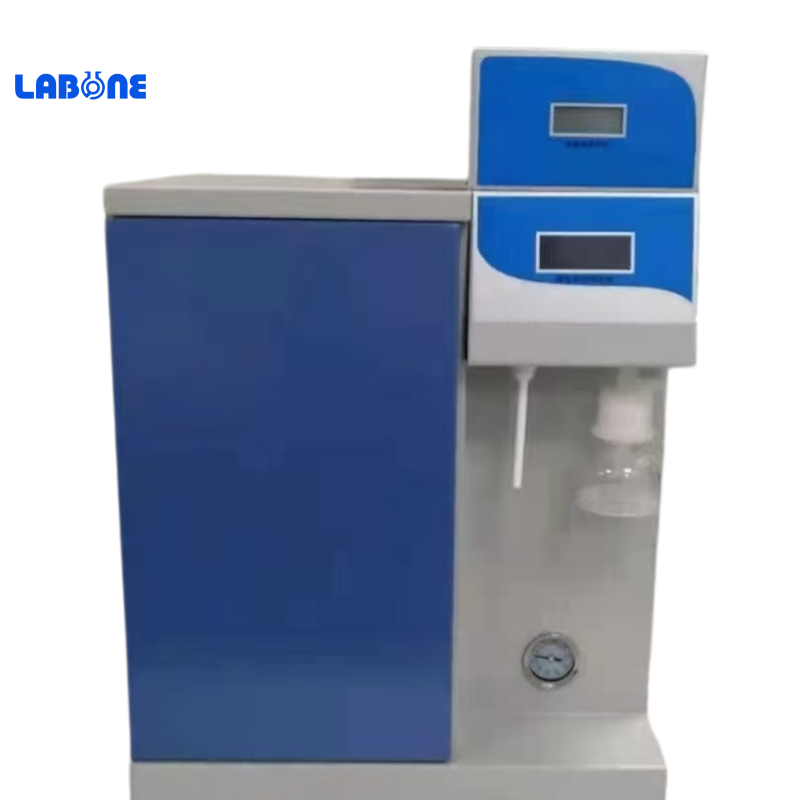

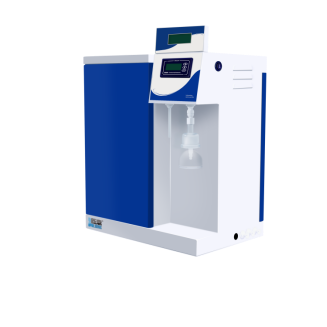

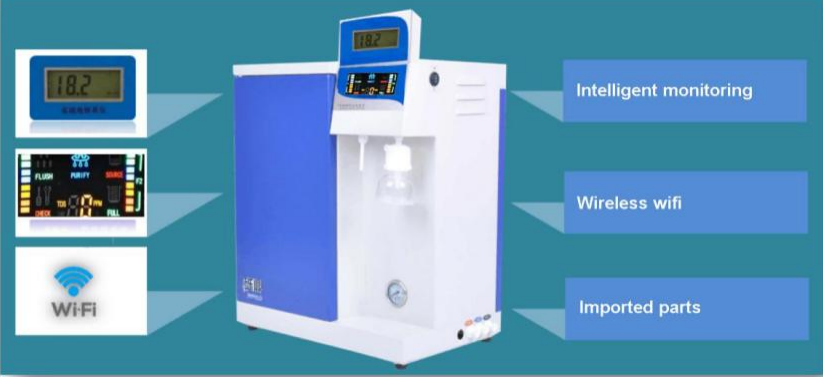

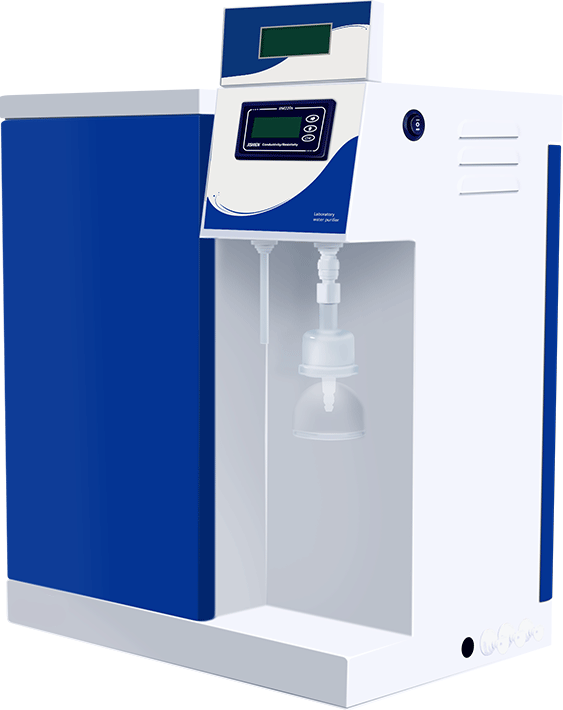

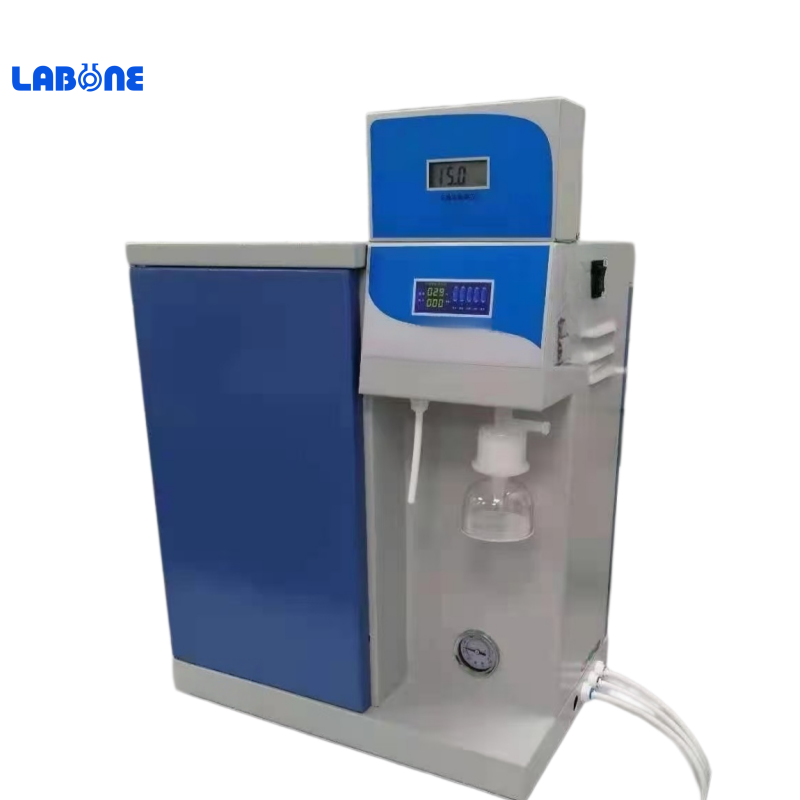

Product Image
Product parameter
Inlet water source | Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C |
Water flow speed | 1.5-2L/min ( with pressure barrel) |
Machine capacity | 15L/H |
Output Water quality | RO water: desalination rate as high as 95-99% (when using new RO membrane) |
UP water: resistivity 18.25MΩ.cm@25°C, TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml, pyrogen<0.001EU/ml, RNases≤0.01ng/ml, DNases≤3Pg/ul | |
Application | Suitable for all kinds of physical and chemical detection, biochemical analysis, blood test, micro analysis, washing special, HPLC, IC, GC, analysis experiments. |
Power supply | 110-240V，50/60Hz; 30-40W |
Dimensions | L x W x H: 41 x 27 x 50cm |
Standard configuration: | Main unit (including 1 set of filters) +12L pressure tank + end point filter + accessory package |
Filter function
PP: PP cotton filter, except for sediment, rust, sludge, colloid, etc.
AC: Granular activated carbon filter: except for color, odor, residual chlorine and heavy metals
AC: Precision activated carbon filter: further removal, extending the life of the purification column
RO: Reverse osmosis membrane filter: filter out <1nm pollutants, ions, particles
UP: Ultra-purification column: ion exchange resin bed, H+ and OH- ion removal
TF: 0.2μm terminal filter
Product consumables list
No | Filter element | Replace cycle | Quantity | Remark |
1 | 11" PP filter | About 4-6 month | 1 pc | |
2 | 11" activated carbon filter | About 4-6 month | 2 pcs | |
3 | 100GPD RO membrane | About 1-2 years | 1 pc | |
4 | 11" ultra-purification column (imported resin) | About 1000 liter | 4 pcs | |
5 | 0.2 μm PES terminal filter | About 2-3 years | 1 pc |
Note: The filter replacement cycle in the table is estimated based on previous customer experience. It is only a suggestion. The specific period is determined by the water quality.

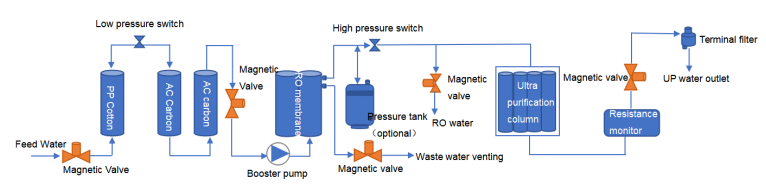

Process
