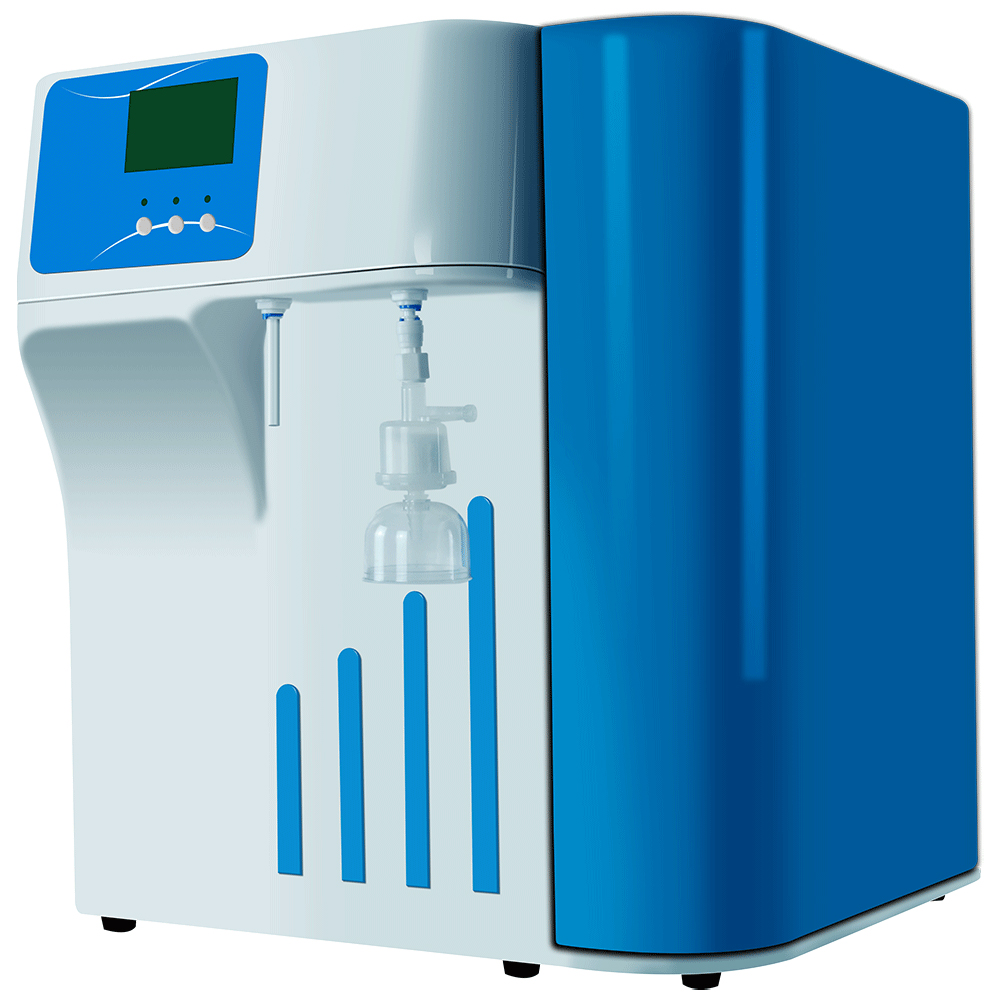

LAB-WP-10 Ultrapure water system

LAB-WP-10 Ultrapure water system

1.Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.

2.ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.

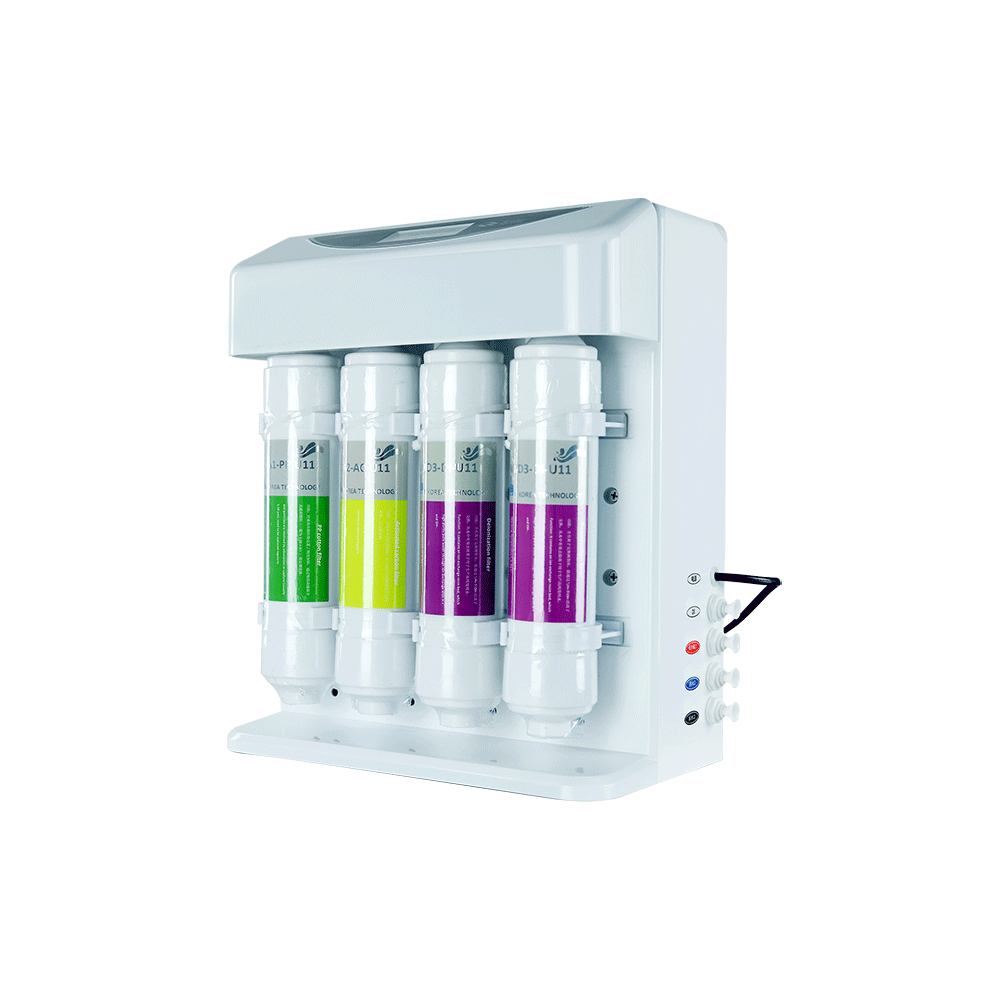

3.Type U Korean quick-insert filters, used imported filtering materials.

4.Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.

5.Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filter’s, this avoid frequent filter replacement.

6.Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.

7.Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.

8.Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.

9.Perfect managing functions of RO&UP water making, circulation system and sterilization.

10. Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.

11.Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.

12.Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.

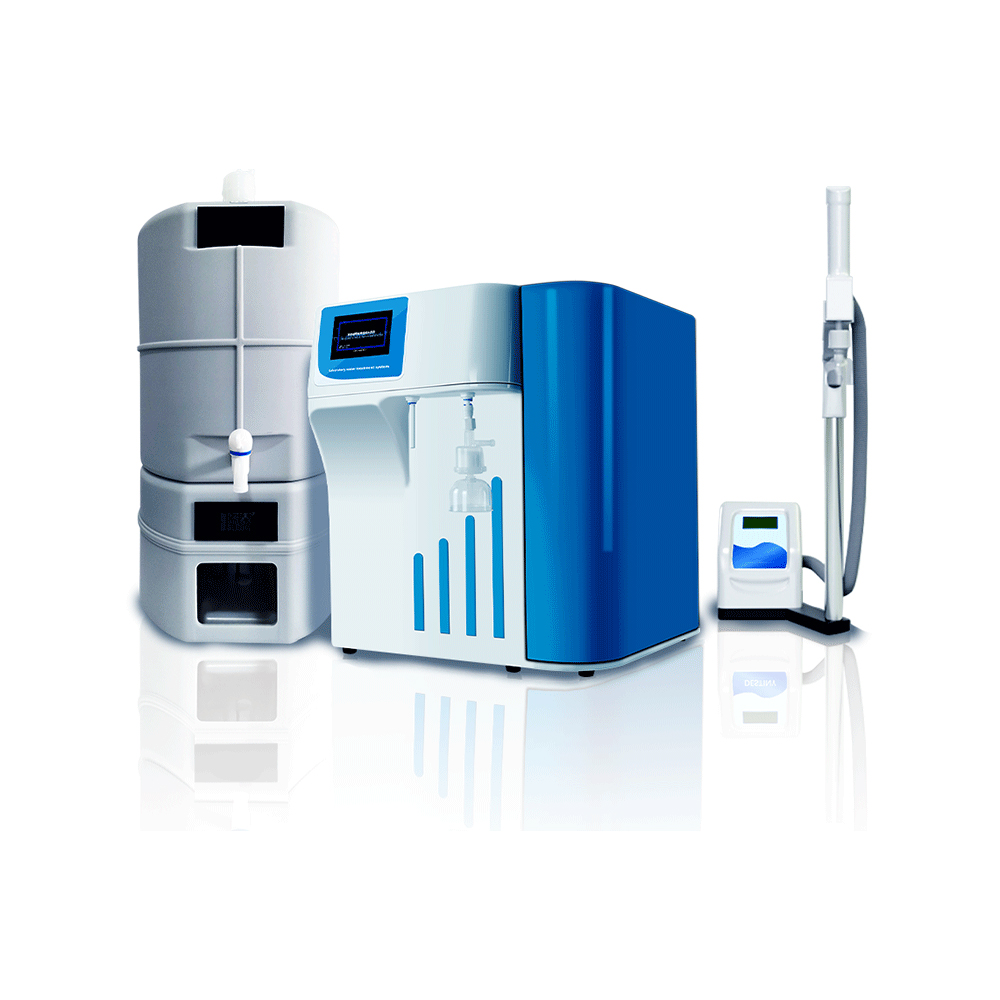

13.Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)

Parameter

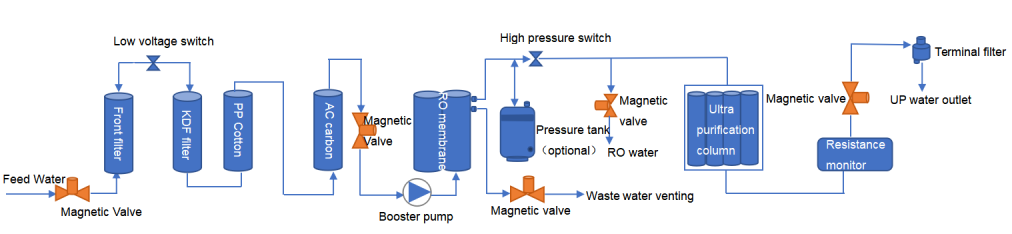

Process

Filter function

Front filter: 10 micron mesh 316 stainless steel washable filter, remove minor impurities,extend PP cotton lifetime.

KDF filter: Remove residual chlorine,heavy metals, retrain fungi breed, lifetime is very long, can protect post-positive filters.

PP: PP cotton filter, remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

AC: Granular activated carbon filter: remove color, odor, residual chlorine and heavy metals

RO: Reverse osmosis membrane: filter out <1nm pollutants, ions, particles

UP: Ultra-purification column: ion exchange resin bed, H⁺ and OH^- ion removal

TF: 0.2μm terminal filter, final removal for < 0.2μm bacteria

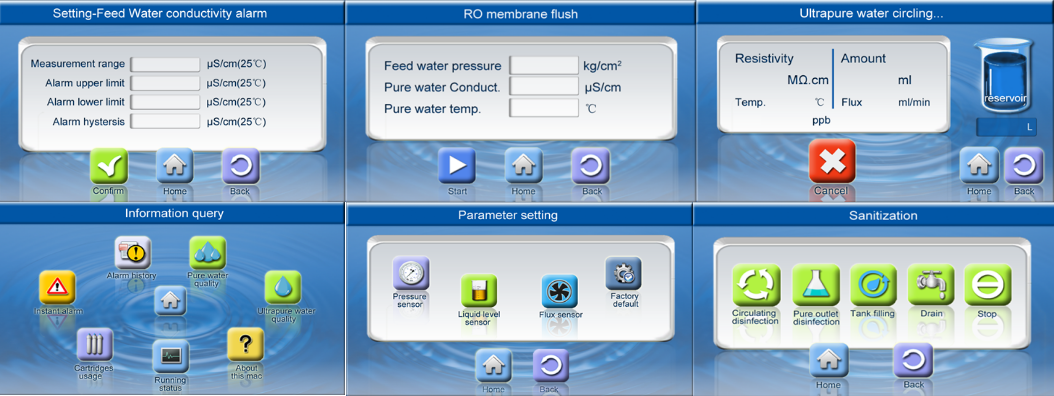

Operation screen display

Product consumables list

Note: The filter replacement cycle in the table is estimated based on previous customer experience. It is only a suggestion. The specific period is determined by the water quality.
