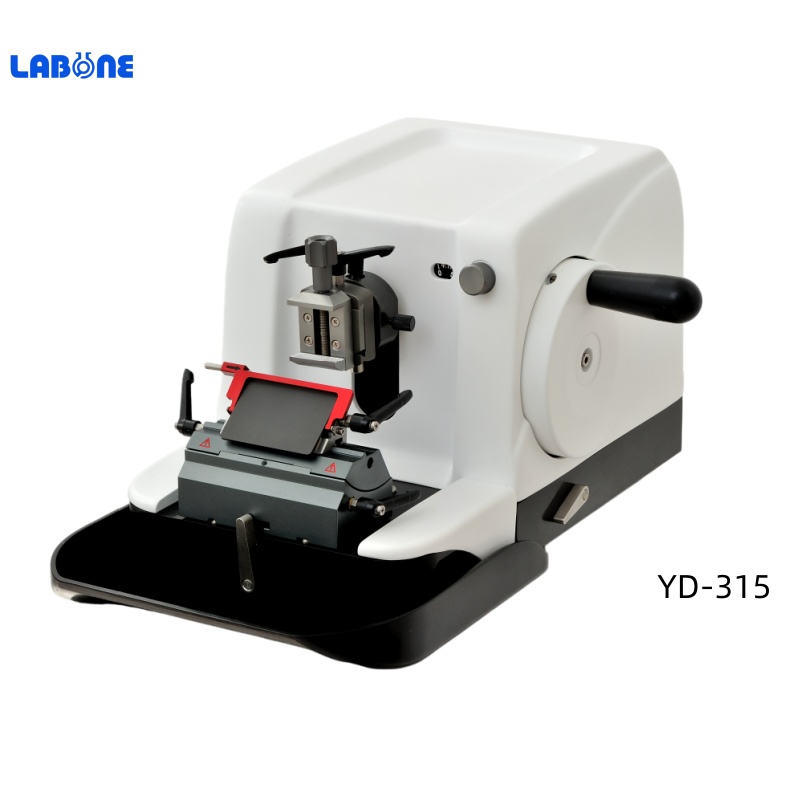

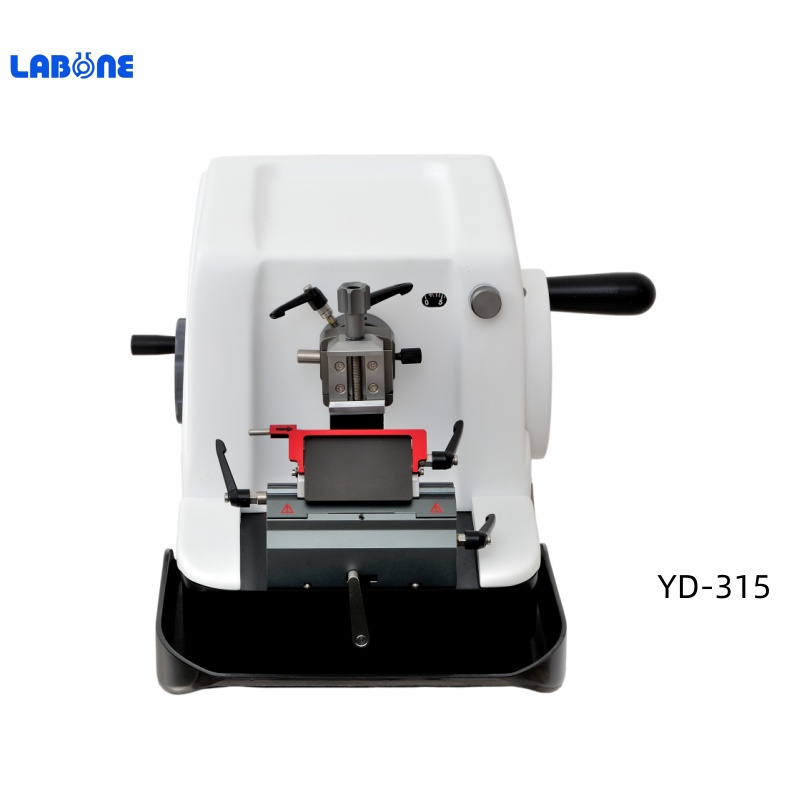

Rotary Microtome YD-315

Rotary Microtome YD-315

Product specifications :

key components such as  guide rail ,screw mandrel, Ratchet rod are import from Japan. The Rotary microtome YD-315  is ideal for most routine histology, biological and industrial needs. High precision & stability ensures exact reproducible section quality in wax and plastic embedded sections.

Product specifications :

• Japan Vertical cross roller bearing mechanism for maintenance free operation

• High precision specimen feed

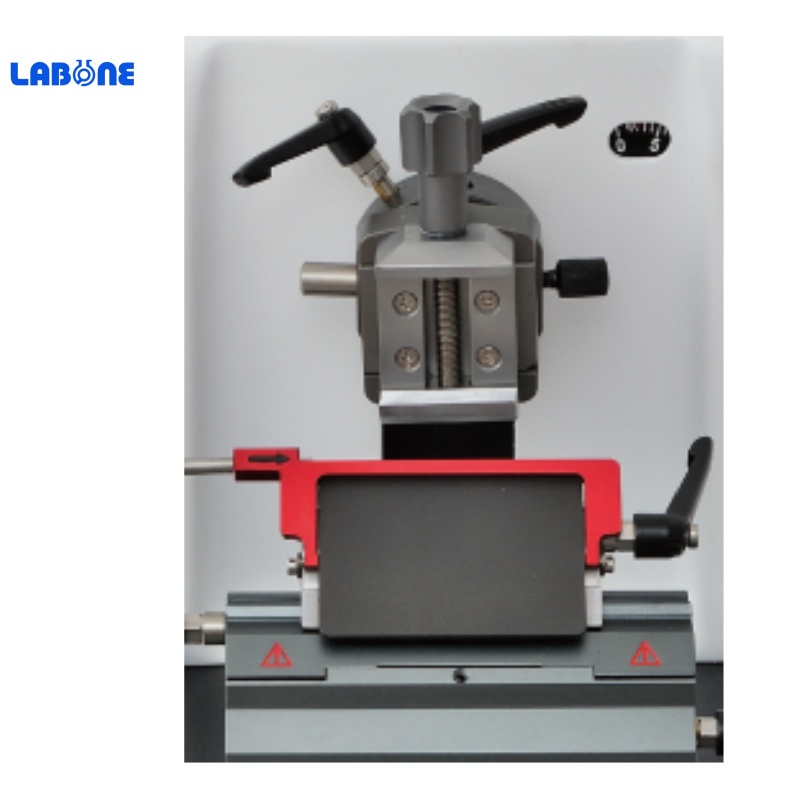

• Universal cassette clamp and standard specimen clamp

• The hand wheel can be locked in any position or highest position , Additional 12 O’ Clock locking by simply pulling the handle. The dual fail-safe control system is safe and reliable

• It adopt the special blade carrier , it is more safe and convenient to use the disposable blade directly . good durability and long service life,

• Optional blade carrier can use steel knife or blade holder .

•Two type of upper part blade holder can use both of low profile blade and high profile blade . lateral displacement to the knife base enable to use the entire length of knife /blade without removing or adjusting knife/blade

•Smoothly running hand wheel, patented gravitational force compensation system of hand wheel enables very smooth and easy turn of hand wheel to obtain a uniform stroke for excellent, perfectly stretched sections

• Spacious, integrated section waste tray

• Finger protection guard

•The microtome can be used optionally with either clockwise rotation or counter clockwise rotation for the coarse feed wheel

• Slot cover to protect the interior of the instrument from sectioning debris

• Coarse feed wheel turn with clockwise rotation or counter clockwise direction

Technical Data:

• Section thickness range: 0- 60μm

 Setting values : From 0-2μm in 0.5μm –increments

                 From 2-10μm in 1μm-increments

                 From 10-20 μm in 2μm-increments

                 From 20-60μm in 5μm-increments

• Horizontal specimen stroke :28 mm

• Vertical specimen stroke : 60mm

• Precision error: ± 5%

• Sample orientation:8°along the X-Y-axis, rotable 360°

• Maximum section size: 50 × 45mm

• Dimensions incl. tray (L/T/H)：30cm（L）X46cm（W）X29cm（H）

• Net weight:30kg

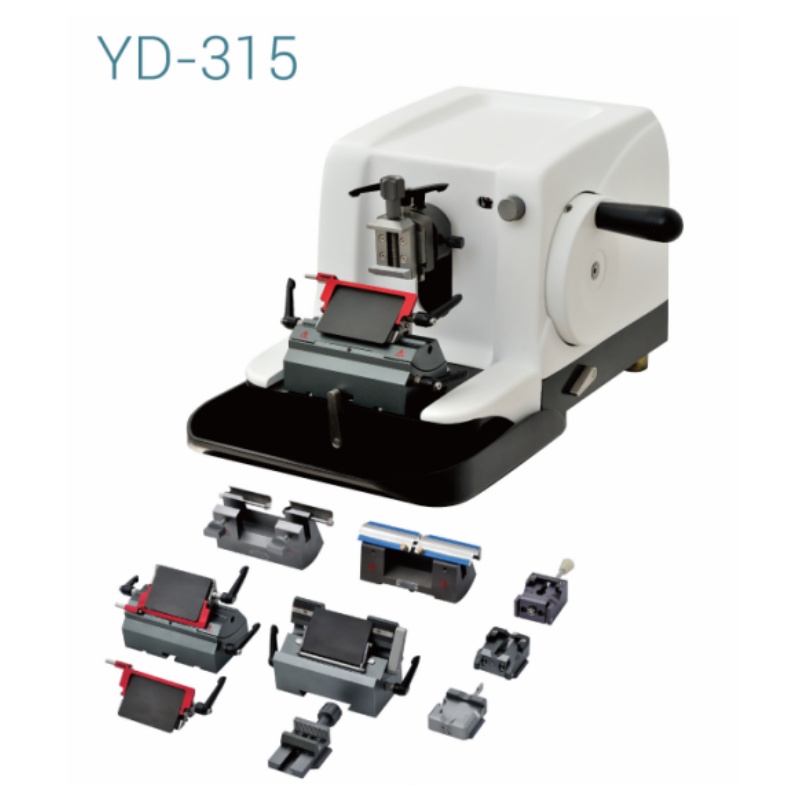

Standard Accessory

2 types Clamp

1 Blade Carrier (for disposable blade )

1 Waste Tray

4 pcs Tissue Molds

50pcs Cassettes

Optional Accessory

Blade Carrier (for Blade holder or Steel knife)

Blade Holder

Microtome Disposable Blade

Steel Knife

See Price list for more detail !
