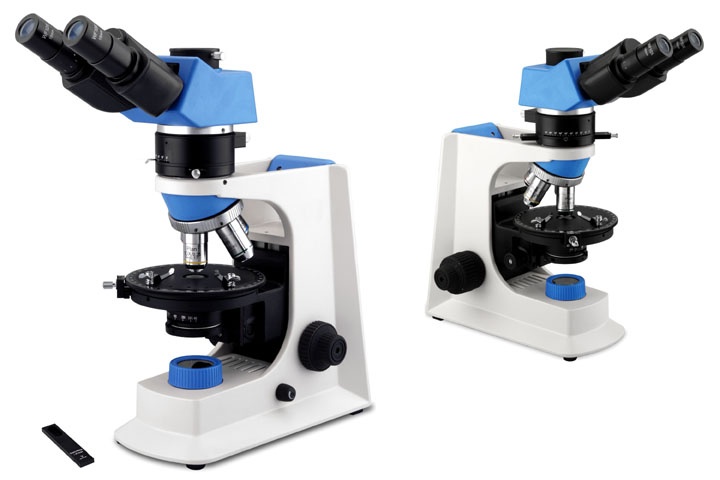

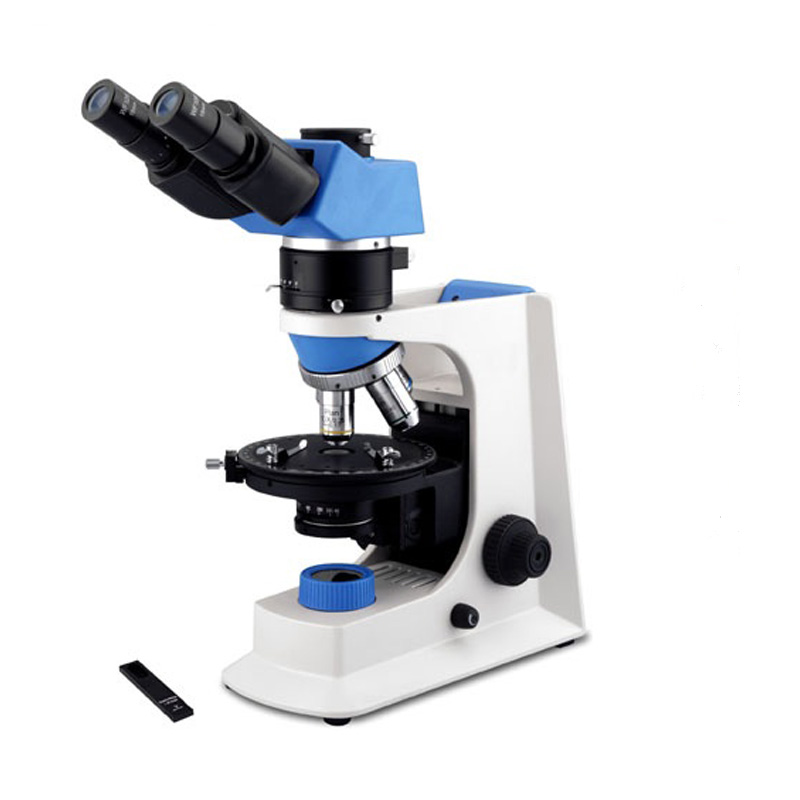

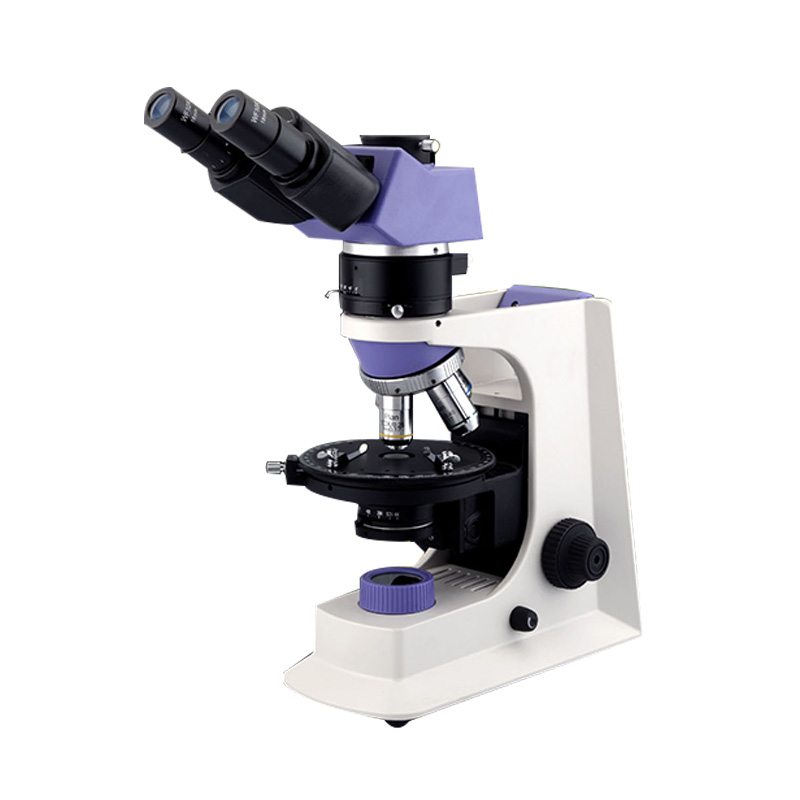

SMART-POL polarizing microscope
Applicable to the factories, mines, medical, criminal investigation laboratory testing and research related to colleges and universities related to teaching
Performance characteristics
1. Widely used in geology, petroleum, coal, chemical, medical and other fields, and related institutions of higher education teaching and research work
2.Infinity achromatic correction optical system, infinity without stress flat field objective
3.Adjustable converter and adjustable rotary platform
4.a high-performance polarizing microscope with complete function and good quality
SMART-POL Polarizing Microscope Outfits
Items | Specification | SMART-POL |
Eyepiece | WF 10×-18mm | ● |
WF 10×-18mm (Reticule 0.1mm) | ● | |
Non-stress | 4× | ● |
10× | ● | |
20× (S) | ● | |
40× (S) | ● | |
60× (S) | ○ | |
100× (S，Oil) | ○ | |
Butterfly Seidentopf Binocular Head | Inclined 30°, Rotatable 360°, | ● |
Butterfly Seidentopf Trinocular Head | Inclined 30°, Rotatable 360°, | ○ |
Nosepiece | Quadplex, Center adjustable | ● |
Analyzer Unit | 0-90°，It can be moved out of the optical path for single polarizing observe. | ● |
Bertrand Lens | It can be moved out of the optical path. | ● |
λ Slip | First Class Red | ● |
1/4λSlip | ● | |
Quartz Wedge | (Ⅰ-Ⅳ Class) | ● |
Revolving Round Stage | Rotatable 360°, Division 1°, Vernier division 6’，can be locked. Diameter Φ142mm | ● |
Polarizing Attached Mechanical Stage | ○ | |
Condenser | Abbe N.A. 1.25 Non-stress | ● |
Polarizing Unit | Under the Condenser | ● |
Illumination | 12V/20W Halogen Lamp | ● |
12V/30W Halogen Lamp | ○ | |
3W-LED Lamp | ○ | |
Filter | Blue(Built in) | ● |
Amber / Green / Neutral | ○ | |
C-mount | 1×/0.75×/0.5×（Focus adjustable） | ○ |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 570mm×275mm×450mm Gross Weight: 8.6 kgs Net Weight: 7.5 kgs
