BDS400 Inverted Biological Microscope
BDS400 Inverted Biological Microscope
Same Objective for Both Bright Field & Phase Contrast Observation
Not Necessary to Change Different Objective
Same Objective for Both Bright Field & Phase Contrast Observation
New research and new development
Apply to observation and cultivation for cell tissue
4X/10X/20X/40X Objective forBoth Bright Field & Phase Contrast

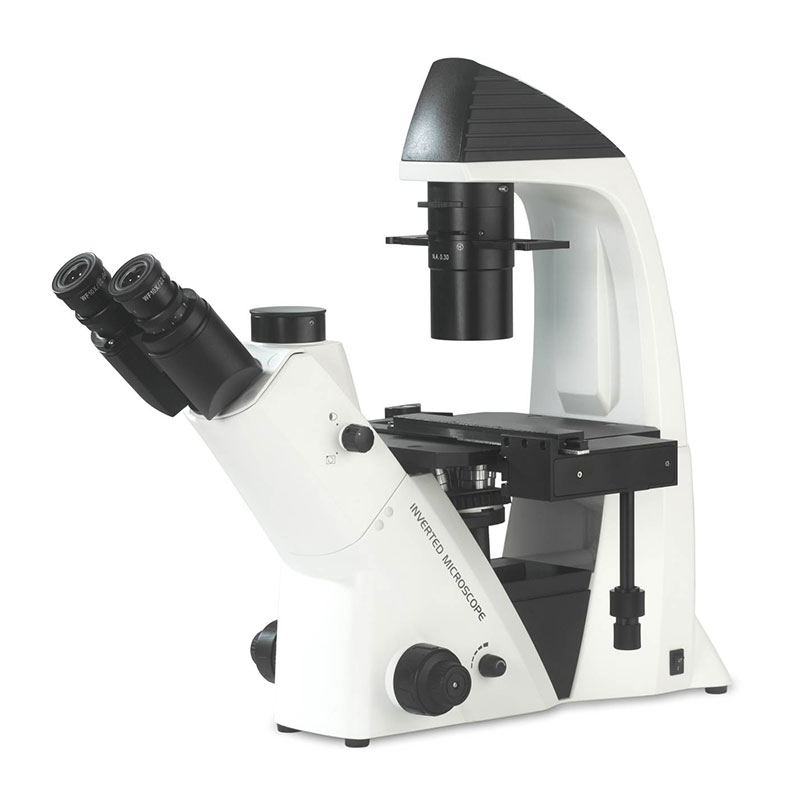

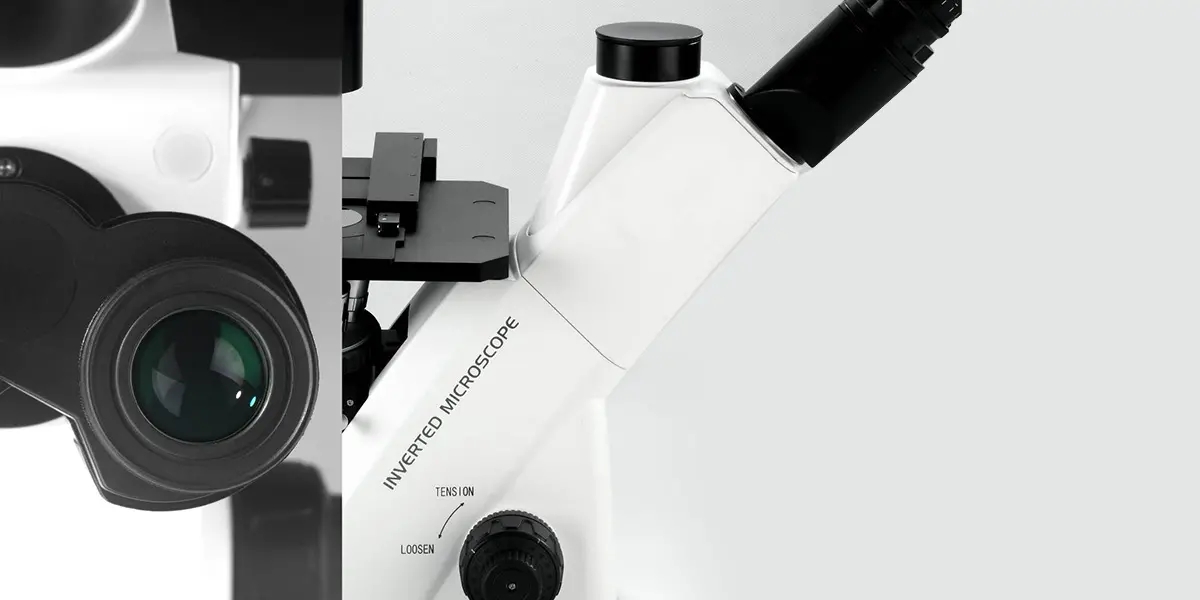

BDS400 Inverted Biological Microscope

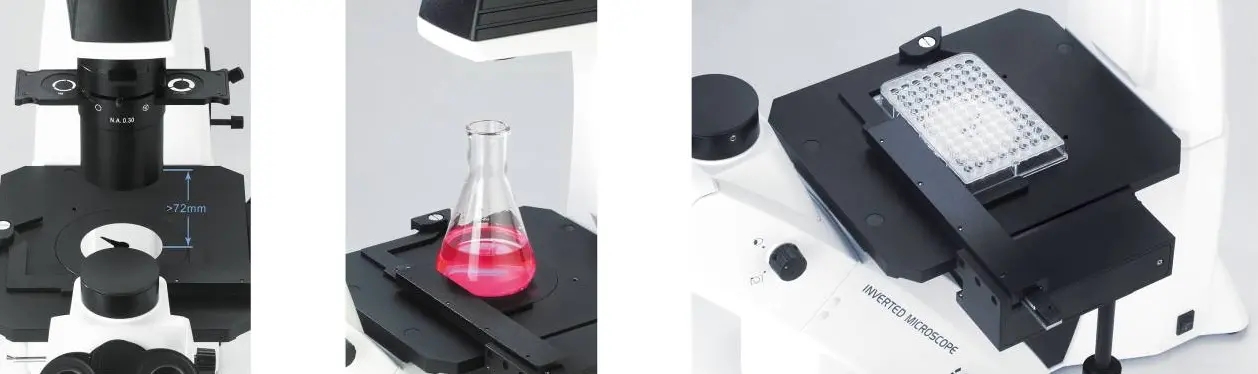

Long working distance condenser N.A. 0.30，Working distance：72mm
Working distance: 195mm (without condenser)，available for extra high culture dish
Large size stage, convenient for research. Size：240mm（X）× 210（Y）mm
Mechanical stage available for 96 holes plate. Moving range：128mm（X）× 80（Y）mm

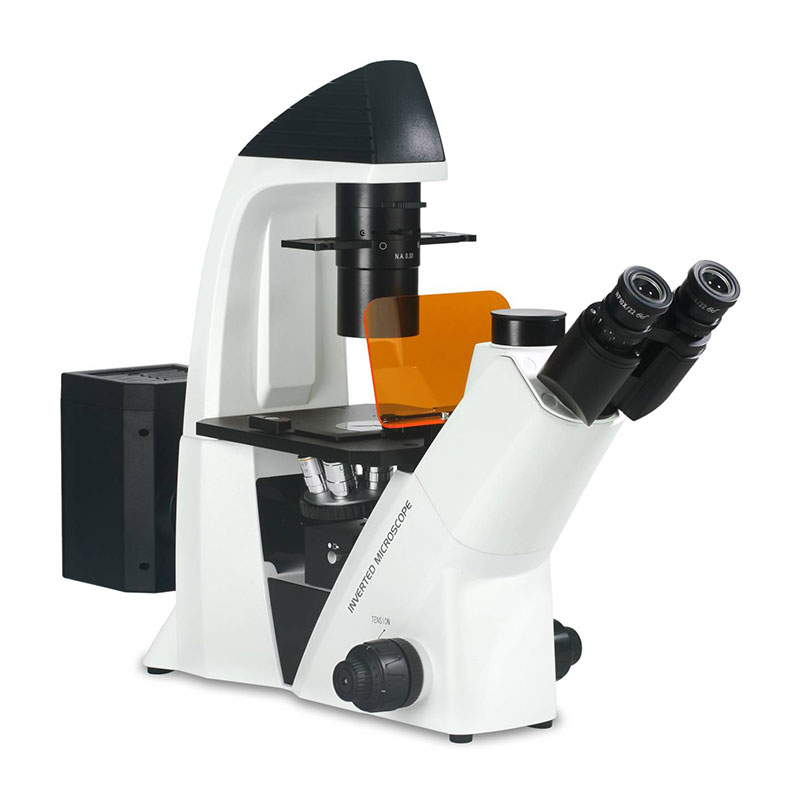

BDS400 Inverted Fluorescence Microscope

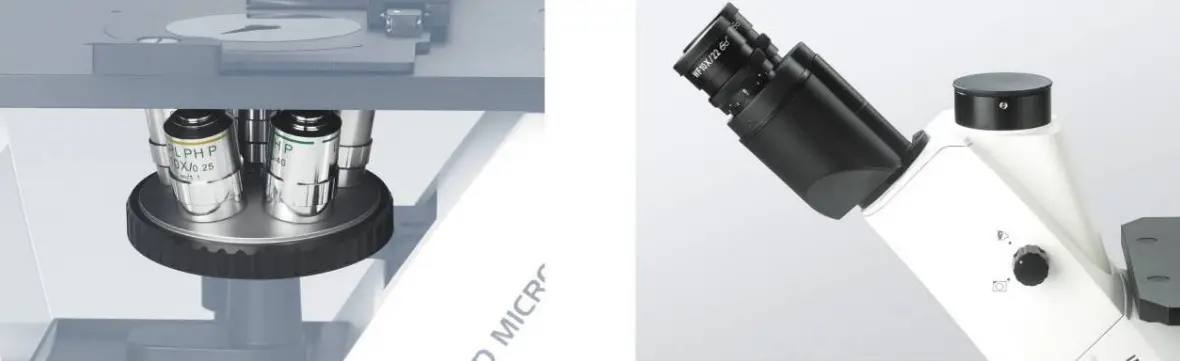

● Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.
● Light distribution (both): 100 : 0 (100% for eyepiece);
80 : 20 (80% for trinocular head and 20% for eyepiece)

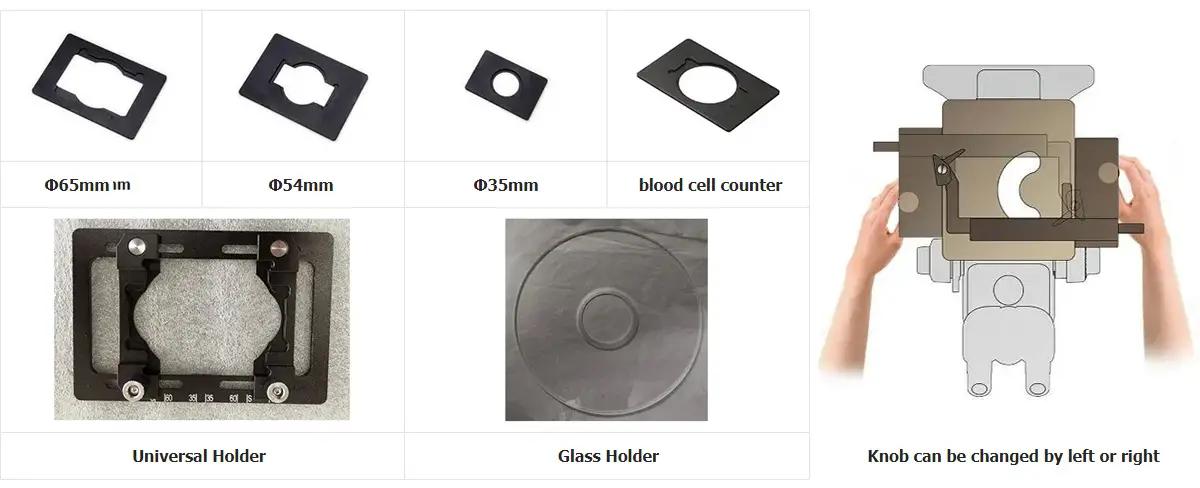

Culture Dish Holder
Objective Parameter List (Cover-glass thickness1.1mm)
 |
|

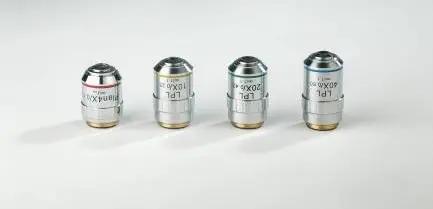

LWD Infinity Plan Objectives | LWD Infinity Plan Phase Contrast Objectives |
Objectives | N.A. | Working distance(mm) | |
LWD Infinity Plan Objectives | L Plan FL 4X | 0.11 | 12.1 |
L Plan FL 10X | 0.25 | 10.3 | |
L Plan FL 20X | 0.45 | 5.8 | |
L Plan FL 40X | 0.65 | 5.1 | |

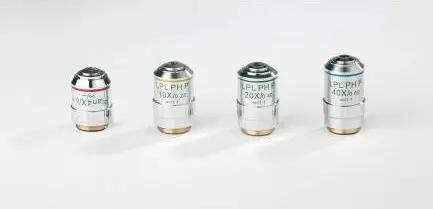

LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X (Both for Bright Field & Phase Contrast) | 0.10 | 9.2 |
L Plan FL PHP 10X (Both for Bright Field & Phase Contrast) | 0.25 | 10.3 | |
L Plan FL PHP 20X (Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
L Plan FL PHP 40X (Both for Bright Field & Phase Contrast) | 0.65 | 5.1 |

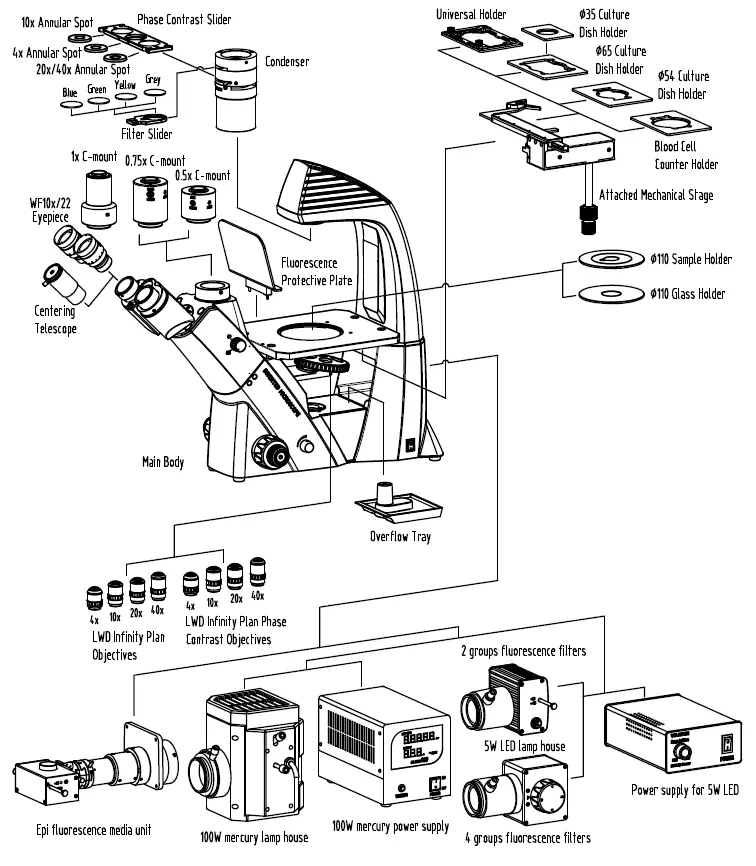

BDS400 Inverted Biological Microscope Outfits
Item | Specification | Outfits | |
Eyepiece | WF10×／22mm | ●● | |
LWD Infinity Plan Objectives | Plan FL 2X／0.06 | W.D.=7.2mm | ○ |
L Plan FL 4X／0.11 | W.D.=12.1mm | ○ | |
L Plan FL 10X／0.25 | W.D.=10.3mm | ○ | |
L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
L Plan FL 40X／0.65 | W.D.=5.1mm | ○ | |
LWD Infinity Plan Phase Contrast Objectives
| L Plan FL PHP 4X／0.10 (Both for Bright Field & Phase Contrast) | W.D.=9.2mm | ○ |
L Plan FL PHP 10X／0.25 (Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ● | |
L Plan FL PHP 20X／0.45 (Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
L Plan FL PHP 40X／0.65 (Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ● | |
LWD Infinity Plan Fluor Objectives | L Plan Fluor 10x / 0.30 | W.D.=14.0mm | ○ |
L Plan Fluor 20x / 0.45 | W.D.=6.6mm | ○ | |
L Plan Fluor 40x / 0.65 | W.D.=3.9mm | ○ | |
Annular Spot | 10×/20×/ 40× | ● | |
4× | ○ | ||
Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0（100% for eyepiece） 80:20 (80% for trinocular head, and 20% for eyepiece) | ● | |
Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ○ | |
Nosepiece | Quintuple | ● | |
Mechanical Stage | Stage size: X×Y: 210×241mm， Round slide size：Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y：128×80mm.) | ● | |
Culture Dish Holder | 65mm+35mm | ○ | |
54mm | ● | ||
blood cell counter | ○ | ||
Glass Holder | ○ | ||
Universal Holder | ○ | ||
Condenser | Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser). | ● | |
Koehler Illumination | 12V/30W （input voltage：100V～240V） | ● | |
5WLED (input voltage：100V～240V) | ○ | ||
Filter(Φ34) | Blue | ● | |
Green | ● | ||
Amber /Grey | ○ | ||
C-mount | 1 X /0.35X /0.5X /0.75X C-Mount (focus adjustable) | ○ | |
Epi Fluorescence Illumination | Epi fluorescence media unit , field diaphragm，center adjustable. | ○ | |
100W mercury lamp ,5WLED(input voltage:100V～240V) | ○ | ||
B, G, V, UV fluorescence filters can be chosen | ○ | ||
Note: "●" In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
