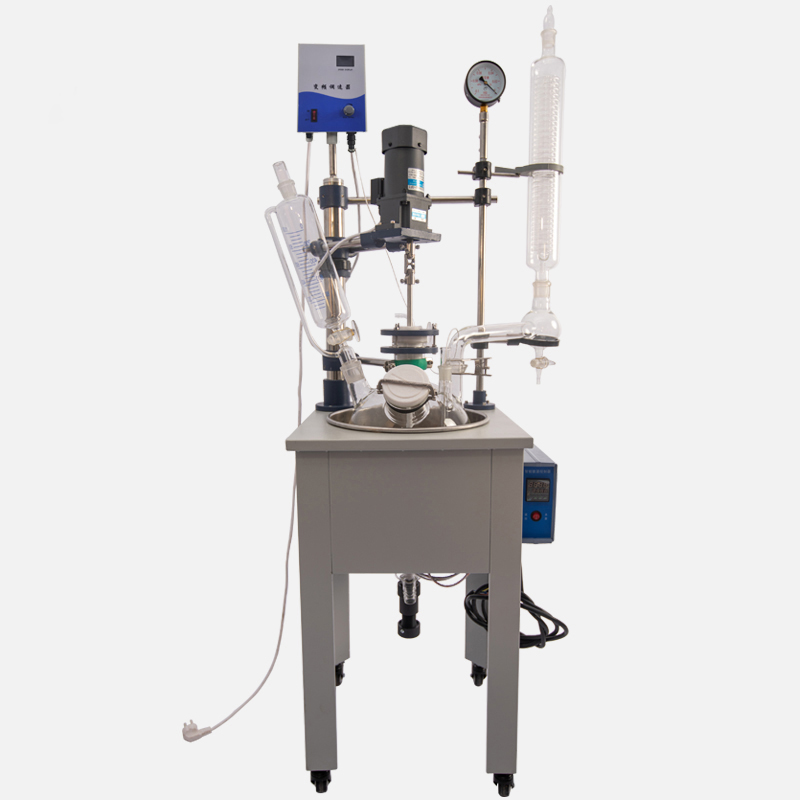

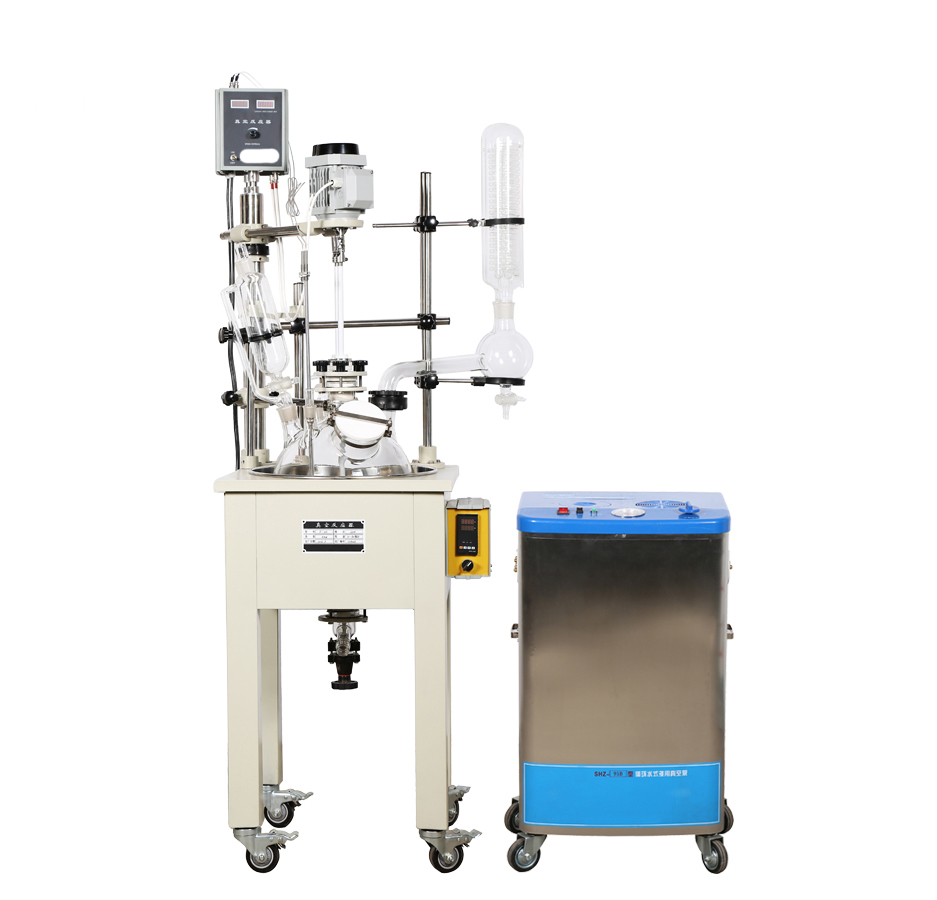

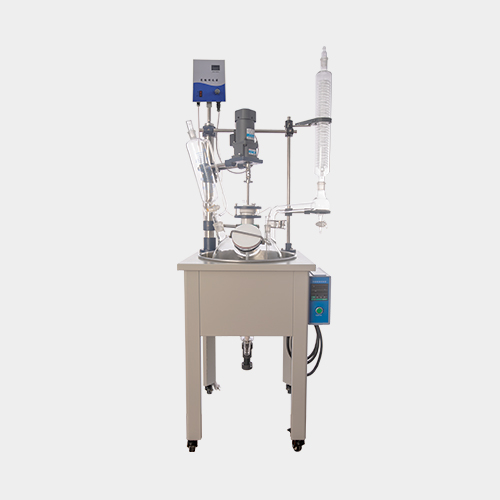

F-20L 20L single-layer glass reactor
Product parameters:The single-layer glass reactor is a multifunctional reactor that can carry out various biochemical sy
Product parameters:
The single-layer glass reactor is a multifunctional reactor that can carry out various biochemical synthesis reactions under constant temperature conditions, and can also perform reflux or distillation at different temperatures. The single-layer glass reactor is efficient, stable, beautiful and durable.
Product Details:
The YDF series single-layer glass reactor is a multi-functional reactor that can carry out various biochemical synthesis reactions under constant temperature conditions, and can also perform reflux or distillation at different temperatures.
◆Sealed PTEE material, strong sealing, anti-corrosion and wear resistance
◆Electronic stepless speed regulation, smooth operation
◆Clear display of control and data information plane, digital display of speed
◆Smart temperature transmitter, digital temperature display
◆Distillation and reflux can be carried out at the same time
◆Large aperture discharge valve, can discharge solid and liquid materials
◆Large diameter cleaning port for easy cleaning
◆Double reflux, integrated standard port condenser tube
◆The main structure is made of stainless steel and aluminum alloy
◆Efficient and stable, beautiful and durable
Specification:
Basic specification | Name | F-20L |
Glass material | GG-17 | |
pot shell material | Spraying antiseptic shell 640*540*890mm | |
Inner port material | stainless steel 450*250mm | |
Moving mode | Brake type universal corner wheel | |
Volume | Ball type 20L | |
Port No. of reactor cover | 7 | |
Distance between discharge to floor | 450mm | |
Temperature range | .-80 to 250degree | |
Vacuum | 0.098Mpa | |
Stirring speed | 0-450rpm | |
Stir rod diameter | 12mm | |
Stir power | 90W1/3 | |
Heating power | 5KW | |
Voltage | 220V 50HZ | |
Overall size (mm*mm*mm) | 700*540*1950 | |
Package size (mm*mm*mm) | 1220*620*790 0.6CBM | |
Gross weight（KG） | 80 | |
Configuration list | Speed display mode | Electronic stepless speed regulation |
Motor | Low speed booster motor, speed ratio 3: 1 | |
Speed display mode | LCD digital display | |
Temperature display | digital display | |
Seal | PTFE seal, ￠80 flange stir port | |
Condenser | Vertical high efficiency double reflux condenser 100*600mm，Φ60 flange port | |
Reflux (distillation) device | Return bend with feeding switch, 50# ball mill port | |
Drop adding device | 1LConstant pressure funnel, 34 standard | |
Pressure release device | standard 34# pressure release valve | |
Temperature tube | standard 24# | |
Solid adding (cleaning) port | ￠120 flange port with PTFE cover | |
Discharge | glass discharge valve, ￠80 flange port | |
Vacuum display mode | Vacuum gauge | |
Mixing connection | universal joint link | |
Stir rod | Anchor type, Stainless steel rod with PTFE |
