TGL16 Table Top High Speed refrigerated Centrifuge

Used for the molecular biology of animals and plants, microorganisms, nucleic acid extraction, cell separation,Clinical test samples, applicable to medicine, life science, agricultural science,Environmental testing, and other scientific research instituti

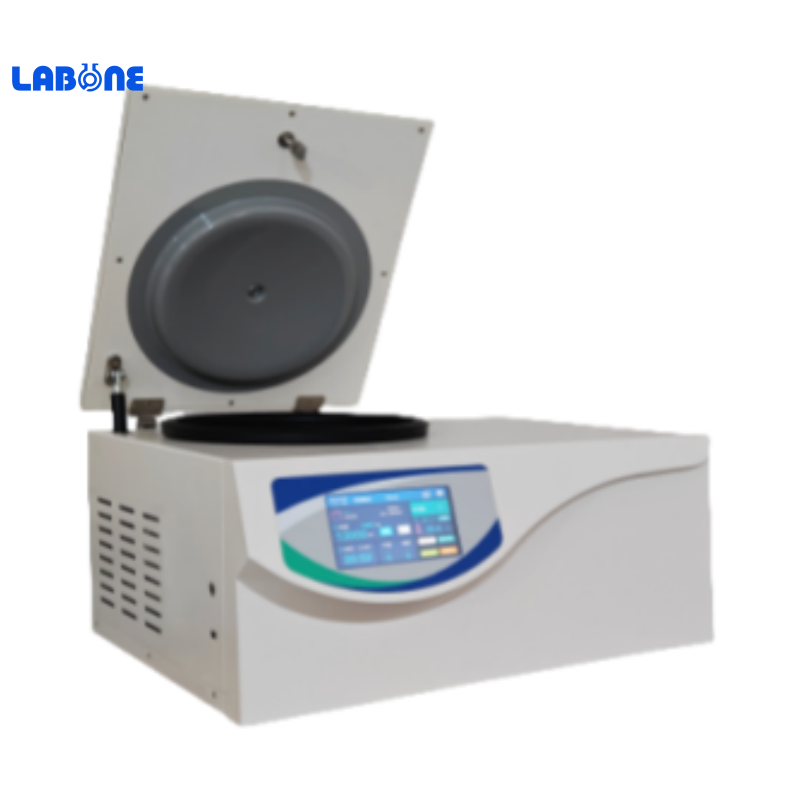

TGL16 Table Top High Speed refrigerated Centrifuge


Used for the molecular biology of animals and plants, microorganisms, nucleic acid extraction, cell separation,Clinical test samples, applicable to medicine, life science, agricultural science,Environmental testing, and other scientific research institutions

Features

1.Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.

2.Imported compressors fluorine free,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.Fast cooling speed, 5 minutes to cool down to 4℃, improving experimental efficiency

3.Microprocessor control, 7-inch touch screen display, external USB interface on the bodytemperature, speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.

4. 100kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.

5. Automatically electric lid lock, over speed, over temperature protection and imbalance protection.

6.High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect sleeve , 3 tiers protection,safe and reliable.

7. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction

8Lever 3 damping and get the ideal centrifugation result.

TGL16 Technical Parameter

Max. Speed

16500rpm

Max. RCF

21800×g

Max. Capacity

6×100ml

Time Range

1~9h59min

RPM/RCF Convert

Yes

Noise (dB)

60

Acc/Dec

10 Kinds

Speed Accuracy

±10r/min

Temperature Accuracy

±1

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ

Size (L x W x Hmm)

665×570×370mm

Net Weight(Kg)

86KG

Certificates

CE,ISO & Calibration report are available

Temperature Range

-20~40

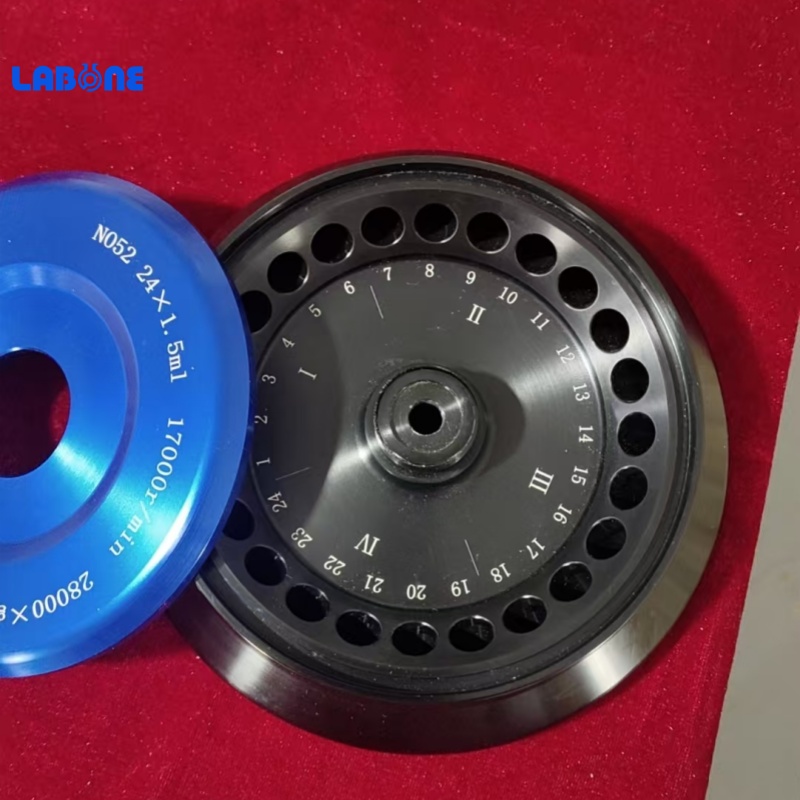

Matched Rotor for TGL16

Order No

Rotor

Max speed (rpm)

Max Volume(ml)

Max RCF (g)

G16-1

Angle rotor

14000

4×8PCR

16168

G16-2

Angle Rotor

15000

30×0.5ml

19100

G16-3

Angle Rotor

14000

40×0.5ml

20080

G16-4

Angle Rotor

16500

12×1.5/2ml

19328

G16-5

Angle Rotor

15000

24×1.5/2ml

21800

G16-6

Angle Rotor

13500

30×1.5/2ml

19500

G16-7

Angle Rotor

13000

48×1.5/2ml

18900

G16-8

Angle Rotor

15000

16×5ml

18700

G16-9

Angle Rotor

14000

6×10ml

16470

G16-10

Angle Rotor

12000

12×10ml

14880

G1611

Angle Rotor

10000

12×15ml

12600

G16-12

Angle Rotor

5000

24×15ml

3230

G16-13

Angle Rotor

5000

30×15ml

3870

G16-14

Angle Rotor

12000

8×20ml

14580

G16-15

Angle Rotor

12000

6×30ml

14050

G16-16

Angle Rotor

11000

6×50ml

13580

G16-17

Angle Rotor

7000

8×50ml

6088

G16-18

Angle Rotor

10000

6×100ml

12520

G16-24

Microplate rotor

4000

2×3×48 Well

2350
