StepMate Stepper
Slim, light and robustWide dispensing volume from 10μL to 5mLUp to 48 dispensing steps in successionEquipped with durable syringe stop leverFits different sizes of disposable polypropylene syringes from 0.5mL to 50mL

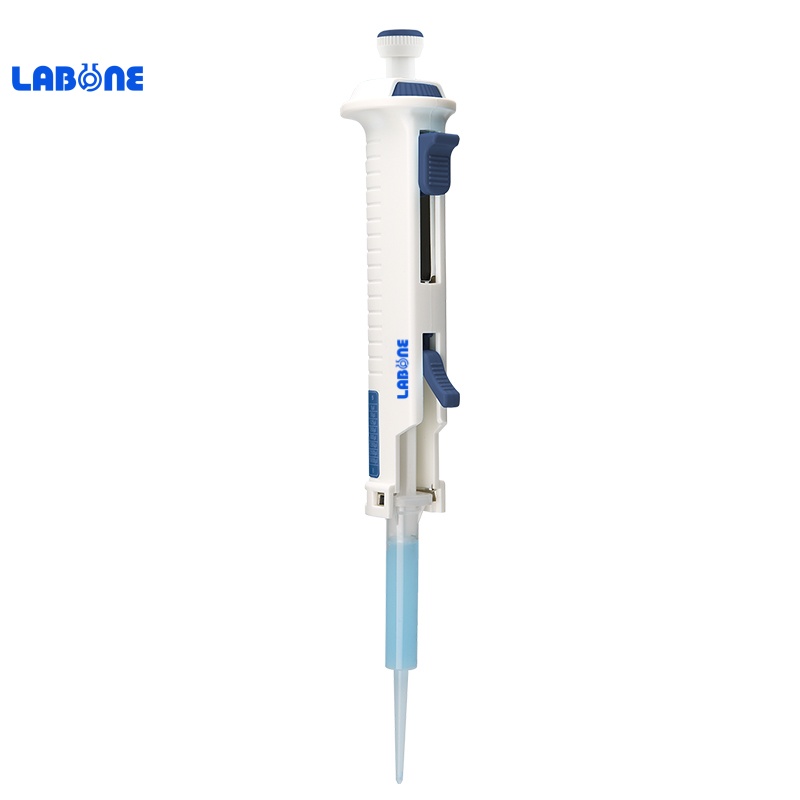

StepMate
Stepper
Positive-displacement, continuously adjustable, repetitive dispenser
Features
Slim, light and robust
Wide dispensing volume from 10μL to 5mL
Up to 48 dispensing steps in succession

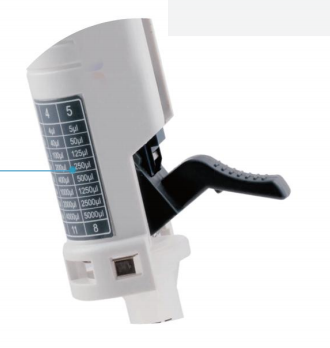

Equipped with durable syringe stop lever
Fits different sizes of disposable polypropylene syringes from 0.5mL to 50mL
Applications
Ideal for any application requiring repetitive dispensing in the clinical, biological, chemical, food and beverage, pharmaceutical industry.

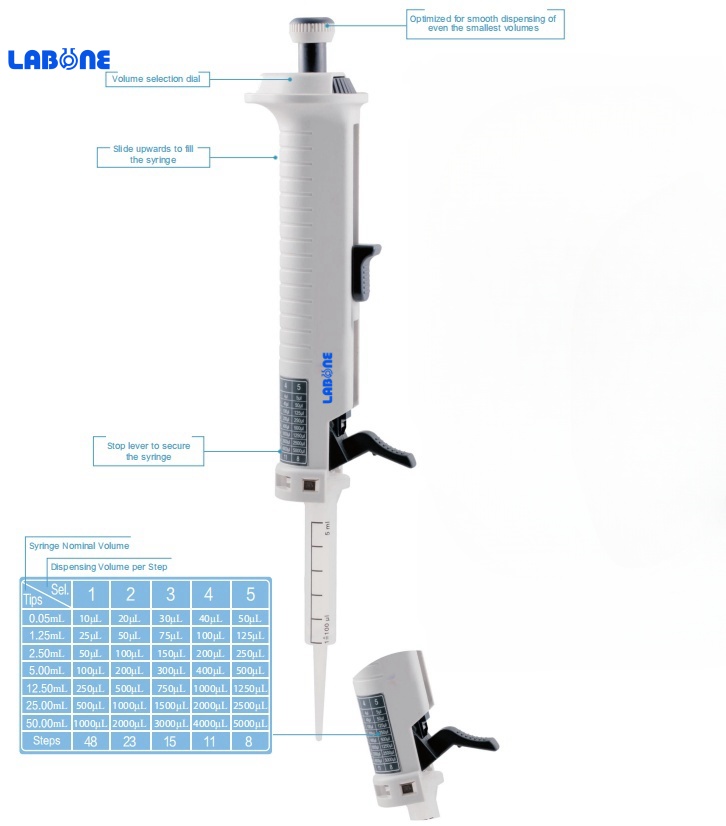

How to select dispensing volume
Find the required dispensing volume in the table. Use the volume selection dial to set the required volume. Select and insert a suitable syringe. Follow the maximum dispensing steps as stated.

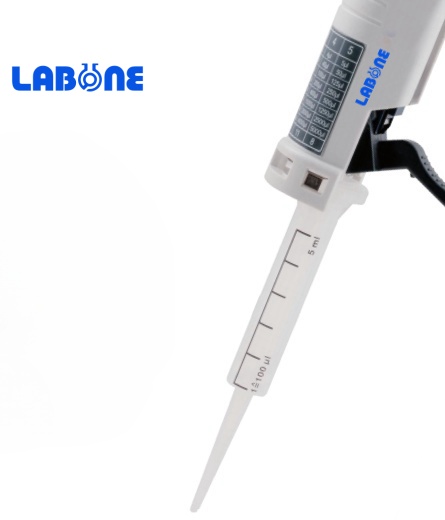

Precision Dispenser Tip
Syringes are convenient for viscous or foaming solutions, volatile liquids and applications where repetitive dispensing of volumes in long series is required
The syringes are made from high quality materials without soft lubricants or other additives.
Specifications
Note: The first and last dispensing liquid should be discarded for precision.
Dial setting | 1 | 2 | 3 | 4 | 5 |
Number of steps | 48 | 23 | 15 | 11 | 8 |
Cat. No. | Syringe volume | Dispensing volume per step | Systematic Error | Random Error | Description | ||||
mL | μL | % | % | ||||||
17900032
| 0.50
| 10
| 20
| 30 | 40 | 50 | ± 0.8
| ≤ 0.7
| 0.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
17900033
| 1.25
| 25
| 50
| 75
| 100
| 125
| ± 0.8
| ≤ 0.5
| 1.25mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
|
17900034
| 2.50
| 50
| 100
| 150
| 200 | 250 | ± 0.8
| ≤ 0.4
| 2.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
|
17900035
| 5.00 | 100 | 200 | 300 | 400 | 500 | ± 0.4 | ≤ 0.3 | 5mL, piston PE-HD, cylinder PP, |
17900036
| 12.50 | 250 | 500 | 750 | 1000 | 1250 | ± 0.3 | ≤ 0.3 | 1 packing, 5 pcs/packing |
17900037
| 25.00 | 500 | 1000 | 1500 | 2000 | 2500 | ± 0.2 | ≤ 0.3 | 12.5mL, piston PE-HD, cylinder PP, |
17900038
| 50.00 | 1000 | 2000 | 3000 | 4000 | 5000 | ± 0.2 | ≤ 0.2 | 1 packing, 5 pcs/packing |
