YD-II Tablet Hardness Tester
Tablet hardness tester is used to measure the crushing hardness of tablets.Applicable standard：JB/T20104-2013

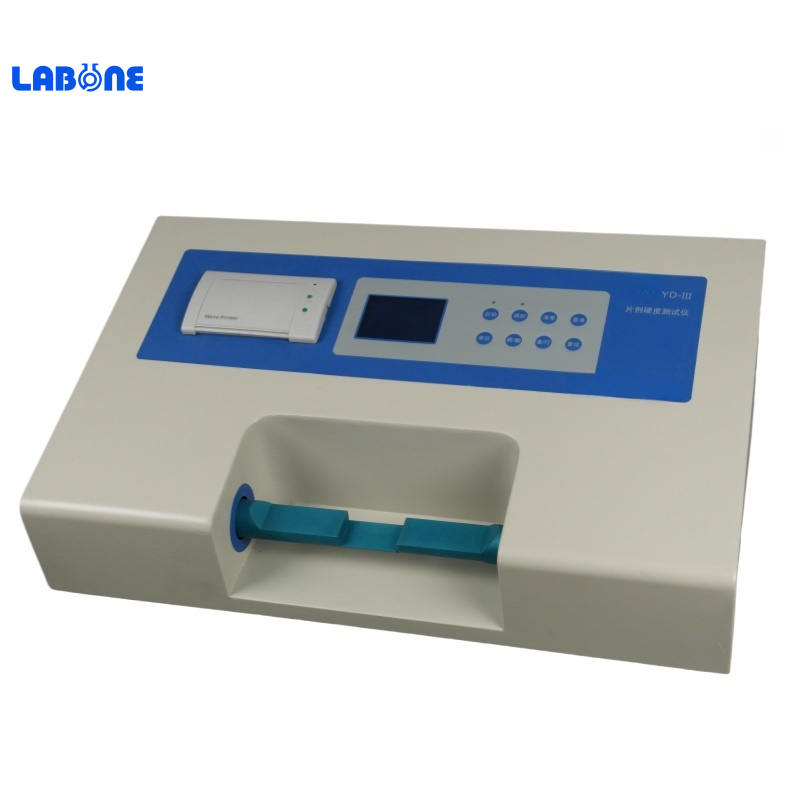

YD-III Tablet Hardness Tester
Tablet hardness tester is used to measure the crushing hardness of tablets.
Applicable standard：JB/T20104-2013
Technical indexes:
Hardness test range | 2-200N 0.2KG-20KG 【Srnsors equipped with 500N(50KG) 】 |
Resolution | 0.1N 0.01Kg |
Hardness measurement accuracy | range:±0.5% |
Tablet measurement diameter | 2-40mm |
Repeated measurement error | ±1% |
Number of testing tablets in each group | ≤100 tablets |
Measuring unit | Newton (N) Kilogram force(Kgf) (1Kgf=9.81N) |
Interface | Standard serial printing interface, with its own micro-printer |
Overall dimensions | L*W*H 500mm*400mm*160mm |
Main features of tablet hardness tester:
① High-precision pressure sensor ensures the precision and reproducibility of test.
② High-definition LCD is adopted, the display contents are rich; users can enjoy intelligent operations according to the screen tips, Chinese character hint and quantitative index are provided for each operational process.
③ Optional for measuring mode: Manual single tablet/automatic continuation.
④ The system can realize automatic tablet compressing, automatic display, automatic latching, automatic reset, automatic cycle test, automatic linear error correction and automatic fault diagnosis.
⑤ Strong data processing ability; statistics, analysis, printing and display are available for test result. It can submit the reports of maximum and minimum values, standard deviation and range of change of the test sample.
⑥ Automatic calculation of tablet return travel can compress your test duty time.
⑦ One-key conversion of measuring unit (Newton-Kilogram)
⑧ New type front paper change mini-printer.
⑨ Convenient and efficient measurement of tablet diameter.
